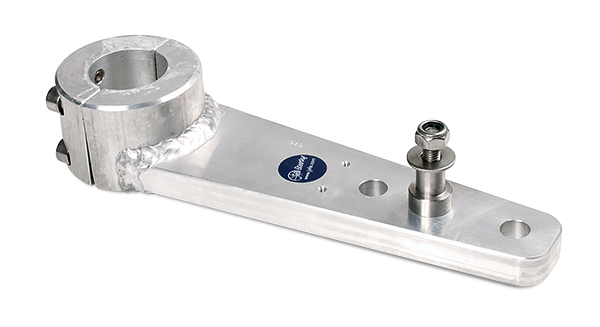

Jefa Tiller Lever
Jefa Tiller Levers are not cast but made from high strength aluminum (AIMgSi1). Due to the high impact loadings from hard rudder stops, the tiller lever must be made from a high strength material and not cast aluminum. The Jefa Tiller Levers are available in three boss sizes depending on the rudder stock diameter. All Jefa Tiller Levers come equipped with an autopilot pickup hole at 9.84" (250mm) from center to center and tap holes for the rudder feedback unit.

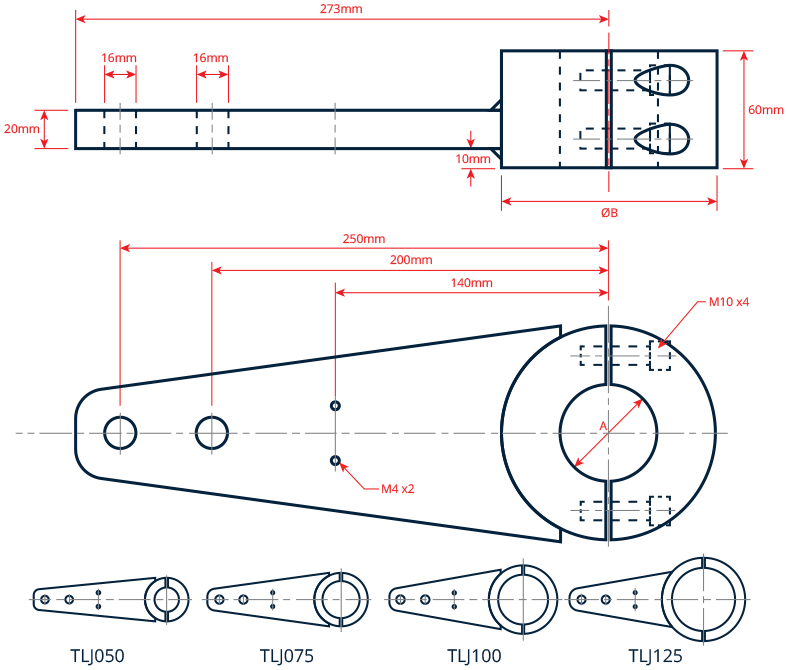

Standard Jefa Tiller Lever Dimensions
| Part # | Max. Diameter (A) |
Diameter (B) |
|---|---|---|
| TLJ050 | 50mm | 90mm |
| TLJ075 | 75mm | 110mm |
| TLJ100 | 100mm | 140mm |
| TLJ125 | 125mm | 170mm |

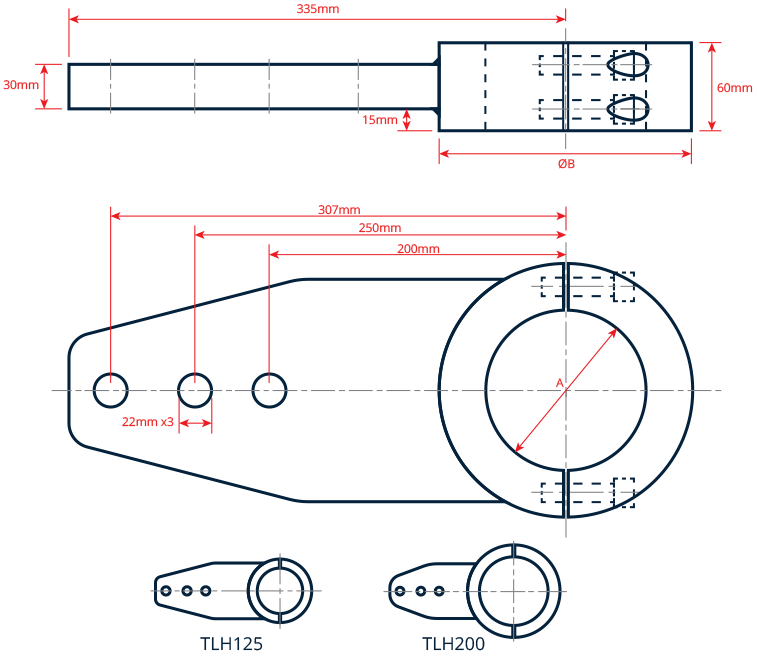

Heavy Duty Jefa Tiller Lever Dimensions
| Part # | Max. Diameter (A) |
Diameter (B) |
|---|---|---|
| TLH125 | 125mm | 170mm |
| TLH200 | 200mm | 250mm |
